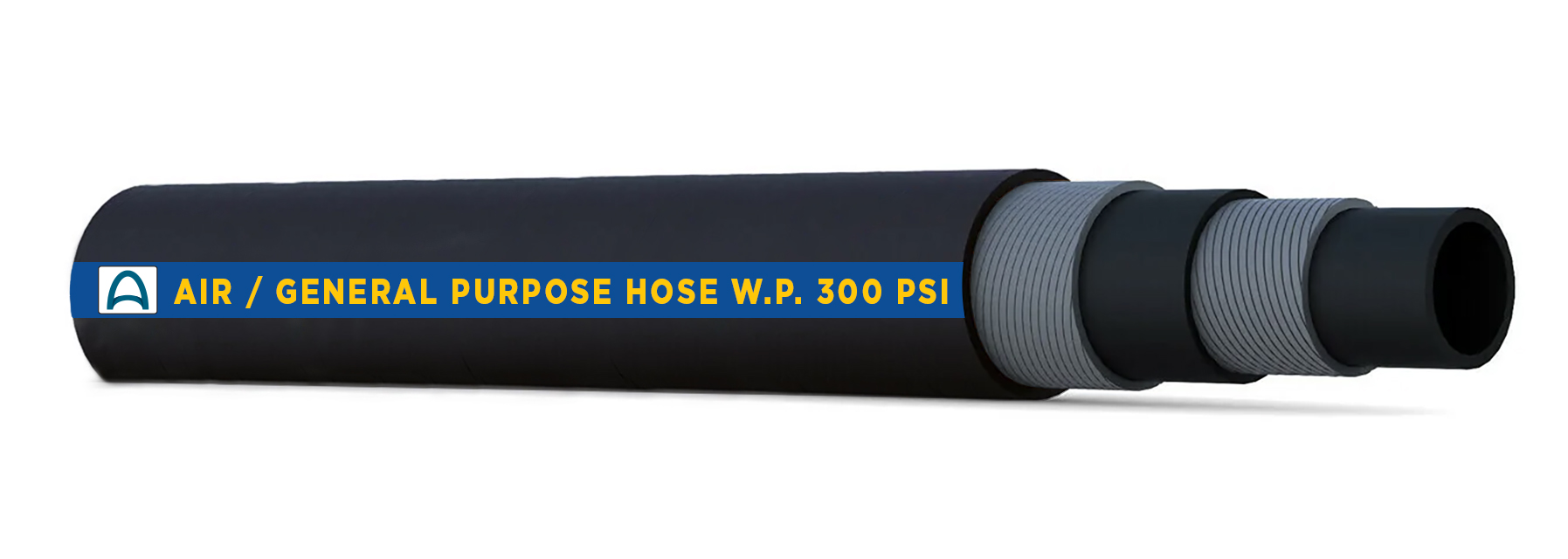

AIR / GENERAL PURPOSE HOSE 300 PSI

GENERAL PURPOSE AIR HOSE 300 PSI

Our Geneal Purose Air Hose is designed for robust use in construction, mining, and pneumatic applications, such as rock drills.
It is built with high-quality materials to withstand harsh environments and ensure long-lasting performance.

• Tube: Air, water, and oil mist resistant, smooth black EPDM blend.
• Reinforcement: High-tensile synthetic cord for superior strength.
• Cover: Abrasion, weather, and ozone resistant, smooth cloth impression, black EPDM blend.
• Temperature Range: -30°C to +85°C (-22°F to +185°F)

Applications:

• Ideal for use in the construction and mining industries.
• Suitable for pneumatic tools such as rock drills.

code	inch	inch	mm	psi	psi	gr/mt	lbs/ft	ft
MA-020-013-V	1/2	0,90	23	300	900	400	0,26	100
MA-020-016-V	5/8	1,02	26	300	900	460	0,30	100
MA-020-019-V	3/4	1,22	31	300	900	620	0,41	100
MA-020-025-V	1	1,45	37	300	900	710	0,47	100
MA-020-032-V	1 1/4	1,73	44	300	900	940	0,63	100
MA-020-038-V	1 1/2	2,00	51	300	900	1200	0,80	100
MA-020-051-V	2	2,59	66	300	900	1825	1,22	100
MA-020-063-V	2 1/2	3,07	78	300	900	2450	1,64	100
MA-020-076-V	3	3,62	92	300	900	3250	2,18	100
MA-020-090-V	3 1/2	4,17	106	300	900	3450	2,31	100
MA-020-102-V	4	4,72	120	300	900	4100	2,75	100
MA-020-152-V	6	6,85	174	300	900	7500	5,03	100
