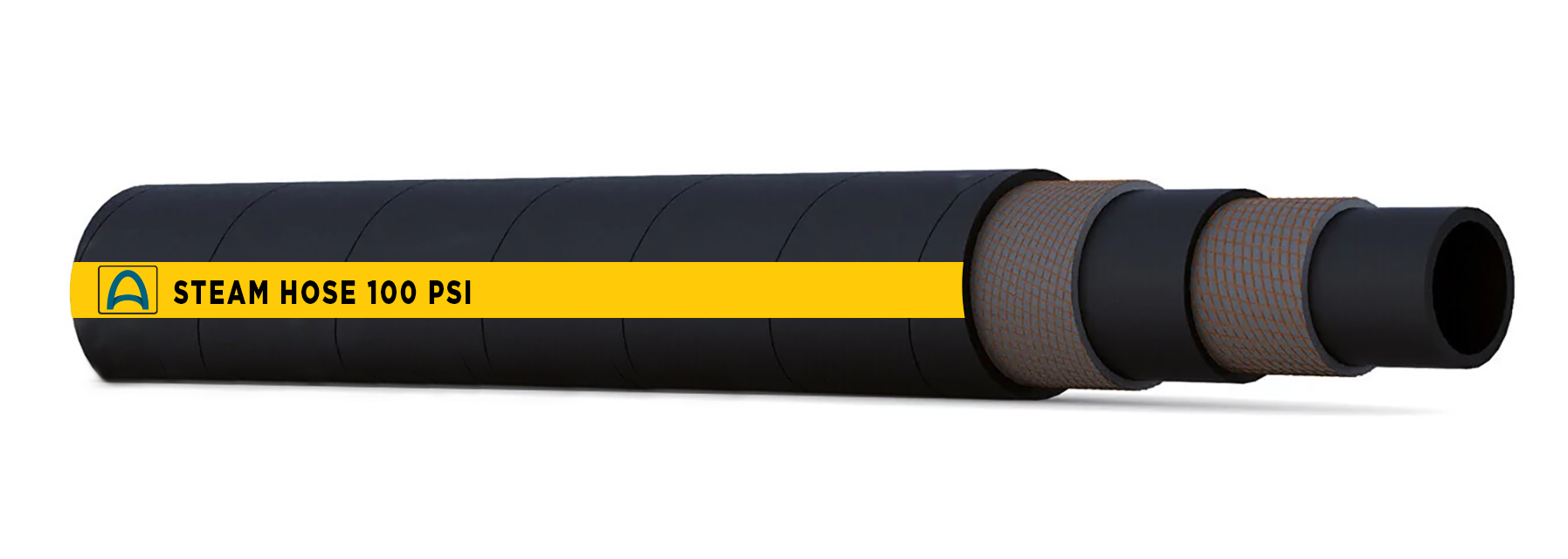

STEAM HOSE 100 PSI

STEAM HOSE 100 PSI 170 C

Our Textile Steam Hose is engineered for reliability in steam applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Seamless Steam resistant black EPDM
• Reinforcement: High-tensile synthetic cord for added strength and durability.
• Cover: Black EPDM -Steam, ozone, and weather resisitant.
• Temperature Range: -30°C to +165°C (-22°F to +330°F)
• Remarks: Standart BS5122/A; Upon request also available with white EPDM cover.

code	inch	inch	mm	psi	psi	gr/mt	lbs/ft	ft
MS-007-013-V	1/2	0,94	24	100	1000	395	0,26	100
MS-007-016-V	5/8	1,10	28	100	1000	520	0,34	100
MS-007-019-V	3/4	1,25	32	100	1000	680	0,45	100
MS-007-025-V	1	1,49	38	100	1000	880	0,59	100
MS-007-032-V	1 1/4	1,81	46	100	1000	1150	0,77	100
MS-007-038-V	1 1/2	2,04	52	100	1000	1300	0,87	100
MS-007-051-V	2	2,63	67	100	1000	1900	1,27	100
